ACAM – Air mechanical chucks

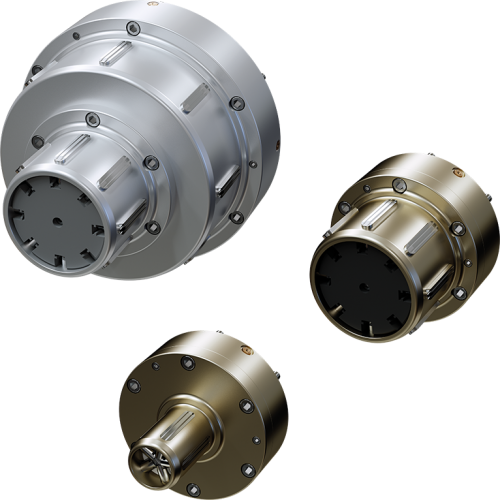

Our highly valued air mechanical chuck ACAM gives you as a customer a carefree operation. The cone in our chuck is made of special plastic where traditional air mechanical chucks use steel.

This means significantly less maintenance and need for spare parts.

Tre olika modeller av chuckar

ACAM 70-5

  • Max load: 1400kg/pair
  • Max torque: 400Nm/chuck
  • Expansion: 68-78mm

ACAM 76-5

  • Max load: 1600kg/pair
  • Max torque: 450Nm/chuck
  • Expansion: 74-84mm

ACAM 150-8

  • Max load: 3000kg/pair
  • Max torque: 900Nm/chuck
  • Expansion: 148-158mm


  • Perfect centring
  • Expanded via rotary coupling or air gun
  • Very durable polymeric core
  • High torque
  • Minimum maintenance
  • Other dimensions available on demand

Tailor-made solutions

We tailor chucks when you need something out of our standard range. To the right you see a specially designed chuck for cores with diameter 410mm. The chuck body is coated with a special surface treatment that provides low friction in combination with outstanding durability.

Contact us, even with your special projects. Together we will find a fitting solution.
